Home / AC-DC Enclosed Type / RT-125

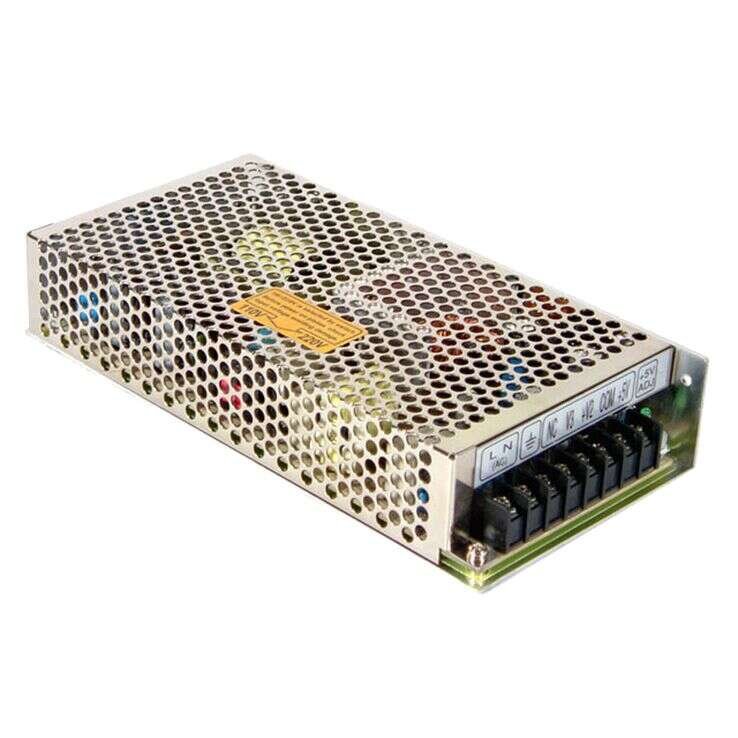

RT-125 Series
Enclosed Power Supplies 131–136W
RT-125 Series Main Features:
Universal AC input /Full range
Cooling by free air convection
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RT-125A / RT-125B
RT-125C / RT-125D
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
LED indicator for power on
100% full load burn-in test
All using 105°C long life electrolytic capacitors
High operating temperature up to 70°C
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RT-125A | RT-125B | RT-125C | RT-125D | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 131 | 132 | 132.5 | 136 | ||||||||||||
| Input Voltage | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | ||||||||||||
| Output Current | 12A, 5.5A, 1A | 12A, 5A, 1A | 10A, 4.5A, 1A | 8A, 3A, 2A | ||||||||||||
| Output Voltage | 5V, 12V, -5V | 5V , 12V, -12V | 5V, 15V, -15V | 5V, 24V, 12V | ||||||||||||
| Output Voltage Option | Triple | Triple | Triple | Triple | ||||||||||||
| Dimensions | 199*98*38 | 199*98*38 | 199*98*38 | 199*98*38 | ||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020 | |||||||||||||||
