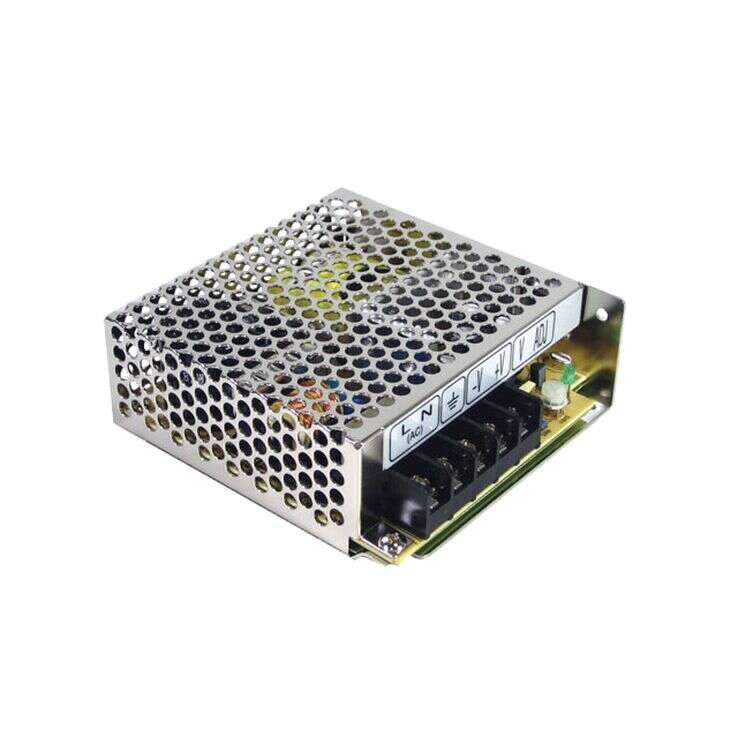

RT-50 Series
Enclosed Power Supplies 46.5–51W
RT-50 Series Main Features:
Cooling by free air convection
High efficiency, long life and high reliability
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RT-50A / RT-50B
RT-50C / RT-50D
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
Universal AC input /Full range
100% full load burn-in test
All using 105°C long life electrolytic capacitors
High operating temperature up to 70°C
LED Indicator for power on
Withstand 5G vibration test
3 years warranty
Quote Request
| RT-50A | RT-50B | RT-50C | RT-50D | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 46.5 | 50 | 50 | 51 | ||||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | ||||||||||||
| Output Current | 4A, 2A, 0.5A | 4A, 2A, 0.5A | 4A, 1.5A, 0.5A | 3A, 1A, 1A | ||||||||||||
| Output Voltage | 5V, 12V, -5V | 5V, 12V, -12V | 5V 15V, -15V | 5V, 24V, 12V | ||||||||||||
| Dimensions | 99*97*36 | 99*97*36 | 99*97*36 | 99*97*36 | ||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020 | |||||||||||||||
