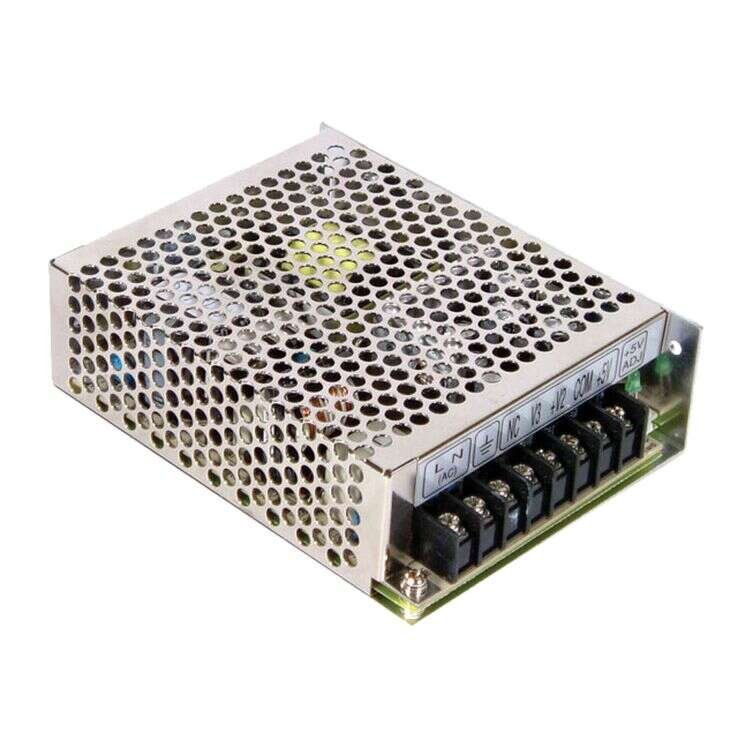

RT-65 Series
Enclosed Power Supplies 64.6–68W
RT-65 Series Main Features:
Universal AC input /Full range
Cooling by free air convection
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RT-65A / RT-65B
RT-65C / RT-65D
MEAN WELL
Enclosed Power Supplies
LED indicator for power on
100% full load burn-in test
All using 105°C long life electrolytic capacitors
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RT-65A | RT-65B | RT-65C | RT-65D | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 66.1 | 64.6 | 65.5 | 68 | ||||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | ||||||||||||
| Output Current | 6A, 2.8A, 0.5A | 5A, 2.8A, 0.5A | 5A, 2.2A, 0.5A | 4A, 1.5A, 1A | ||||||||||||
| Output Voltage | 5V, 12V, -5V | 5V, 12V, -12V | 5V, 15V, -15V | 5V, 24V, 12V | ||||||||||||
| Output Voltage Option | Triple | Triple | Triple | Triple | ||||||||||||
| Dimensions | 129*98*38 | 129*98*38 | 129*98*38 | 129*98*38 | ||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020 | |||||||||||||||
