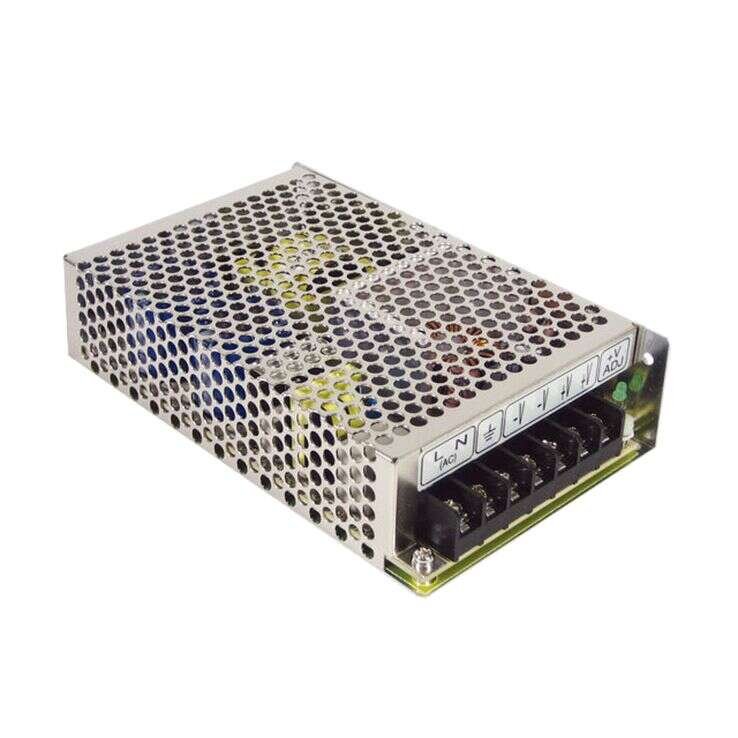

RT-85 Series
Enclosed Power Supplies 84.5–90W
RT-85 Series Main Features:
Universal AC input /Full range
Cooling by free air convection
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RT-85A / RT-85B
RT-85C / RT-85D
MEAN WELL
Enclosed Power Supplies
LED indicator for power on
100% full load burn-in test
All using 105°C long life electrolytic capacitors
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RT-85A | RT-85B | RT-85C | RT-85D | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 84.5 | 88 | 87.5 | 90 | ||||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | ||||||||||||
| Output Current | 8A, 3.5A, 0.5A | 8A, 3.5A, 0.5A | 7A, 3A, 0.5A | 6A, 2A, 1A | ||||||||||||
| Output Voltage | 5V, 12V, -5V | 5V,12V, -12V | 5V, 15V, -15V | 5V, 24V, 12V | ||||||||||||
| Output Voltage Option | Triple | Triple | Triple | Triple | ||||||||||||
| Dimensions | 159*97*38 | 159*97*38 | 159*97*38 | 159*97*38 | ||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020 | |||||||||||||||
