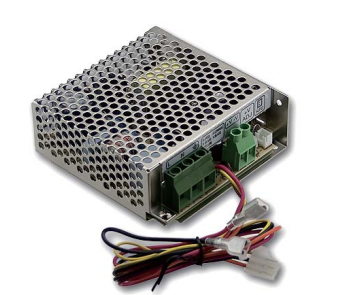

SCP-35 Series
Chargers 35W
SCP-35 Series Main Features:
No load power consumption <0.75W
Protections: Short circuit/ Overload/ Over voltage/ Battery polarity (by fuse)
Models:
Manufacturer:
Type:
Other features:
SCP-35-12 / SCP-35-24
MEAN WELL
Security&Specific Power Supplies
Universal AC input/ full range
Cooling by free air convection
LED indicator for power on
Temperature compensation function
(by external thermistor)
100% full load burn-in test
2 years warranty
Quote Request
| SCP-35-12 | SCP-35-24 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 35 | 35 | ||||||||||||||
| Input Voltage | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | ||||||||||||||
| Output Current | 0~2.6A | 0~1.4A | ||||||||||||||
| Output Voltage | 13.8V | 27.6V | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Dimensions | 99x97x36 | 99x97x36 | ||||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1 | |||||||||||||||
