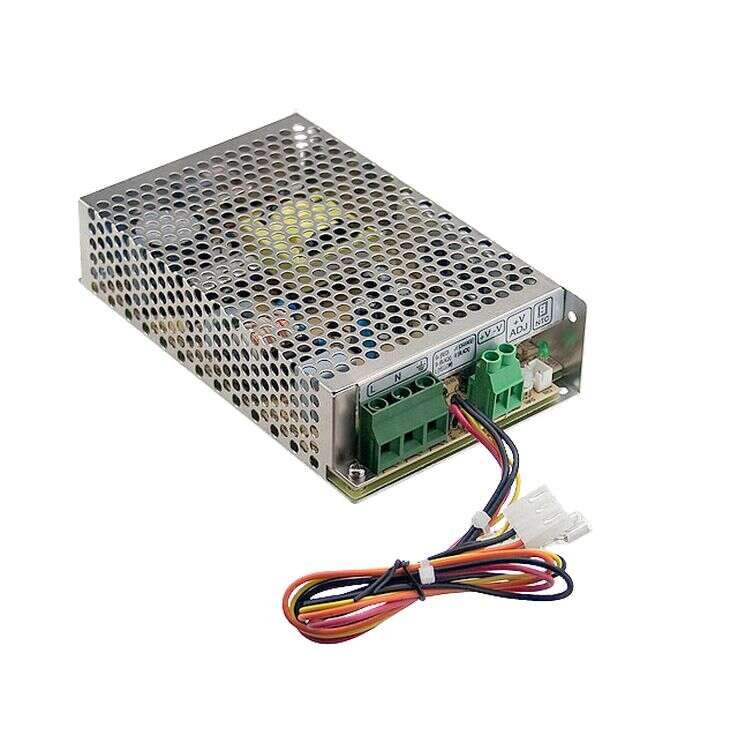

SCP-75 Series
Chargers 75W
SCP-75 Series Main Features:
No load power consumption <0.75W
Protections: Short circuit/ Overload/ Over voltage/ Battery polarity (by fuse)
Models:
Manufacturer:
Type:
Other features:
SCP-75-12 / SCP-75-24
MEAN WELL
Security&Specific Power Supplies
Universal AC input/ full range
Cooling by free air convection
LED indicator for power on
Temperature compensation function
(by external thermistor)
100% full load burn-in test
2 years warranty
Quote Request
| SCP-75-12 | SCP-75-24 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | ||||||||||||||
| Input Voltage | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | ||||||||||||||
| Output Current | 0~5.4A | 0~2.7A | ||||||||||||||
| Output Voltage | 13.8V | 27.6V | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| DC Output Adjustment | 95%~115% rated output voltage | 95%~115% rated output voltage | ||||||||||||||
| Dimensions | 159x97x38 | 159x97x38 | ||||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1 | |||||||||||||||
