Home / DC-DC Enclosed Type / SD-100

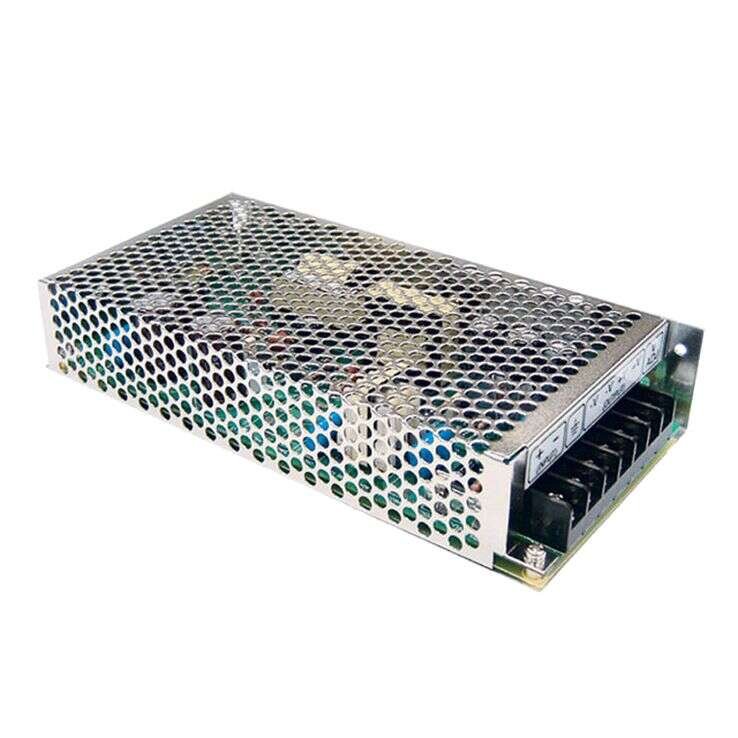

SD-100 Series
100W Single Output DC-DC Converter
SD-100 Series Main Features:
2:1 wide input range
Protections: Short Circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
SD-100A-5 / SD-100B-5
SD-100C-5 / SD-100D-5
SD-100A-12 / SD-100B-12
SD-100C-12 / SD-100D-12
SD-100A-24 / SD-100B-24
MEAN WELL
Enclosed Power Supplies
1500VAC I/O isolation
Built in EMI filter, low ripple noise
Low cost
High reliability
2 years warranty
Quote Request
| SD-100A-5 | SD-100B-5 | SD-100C-5 | SD-100D-5 | SD-100A-12 | SD-100B-12 | SD-100C-12 | SD-100D-12 | SD-100A-24 | SD-100B-24 | SD-100C-24 | SD-100D-24 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 90 | 100 | 100 | 100 | 102 | 102 | 102 | 102 | 100.8 | 100.8 | 100.8 | 100.8 | ||||
| Input Voltage | 9.5~18Vdc | 19~36Vdc | 36~72Vdc | 72~144Vdc | 9.5~18Vdc | 19~36Vdc | 36~72Vdc | 72~144Vdc | 9.5~18Vdc | 19~36Vdc | 36~72Vdc | 72~144Vdc | ||||
| Output Current | 18A | 20A | 20A | 20A | 8.5A | 8.5A | 8.5A | 8.5A | 4.2A | 4.2A | 4.2A | 4.2A | ||||
| Output Voltage | 5V | 5V | 5V | 5V | 12V | 12V | 12V | 12V | 24V | 24V | 24V | 24V | ||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | ||||
| Dimensions | 199x98x38 | 199x98x38 | 199x98x38 | 199x98x38 | 199x98x38 | 199x98x38 | 199x98x38 | 199x98x38 | 199x98x38 | |||||||
| Working Temperature | -15~+60°C | |||||||||||||||
| Satety Standards | IEC 62368-1(for D type only) approved /BS EN/ , , design refer to AS/NZS 62368.1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||||||||||||||
