Home / DC-DC Enclosed Type / SD-1000

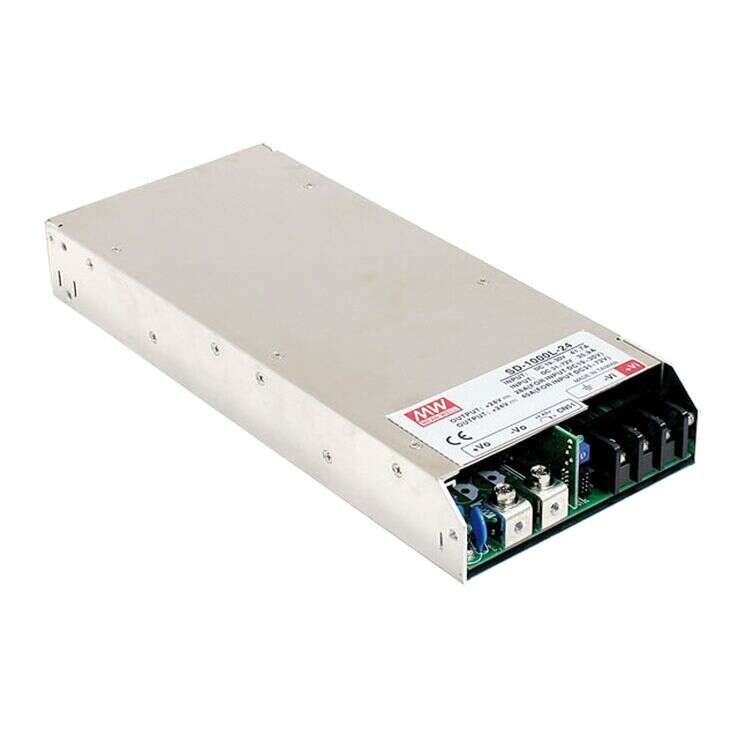

SD-1000 Series
1000W Single Output DC-DC Converter
SD-1000 Series Main Features:
1U low profile 41mm
High power density 10.7w/inch³
Protections: Short Circuit / Overload / Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
SD-1000L-12 / SD-1000L-24
SD-1000L-48 / SD-1000H-12
SD-1000H-24 / SD-1000H-48
MEAN WELL
Enclosed Power Supplies
2000VAC I/O isolation
Output OK signal
Built-in remote ON-OFF control
Built-in remote sense function
Forced air cooling by built-in DC fan with
fan speed control
12V, 0.25A auxiliary output
3 years warranty
Quote Request
| SD-1000L-12 | SD-1000L-24 | SD-1000L-48 | SD-1000H-12 | SD-1000H-24 | SD-1000H-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 720/td> | 960 | 1008 | 720/td> | 960 | 1008 | ||||||||||
| Input Voltage | 19~72Vdc | 19~72Vdc | 19~72Vdc | 19~72Vdc | 19~72Vdc | 19~72Vdc | ||||||||||
| Output Current | 60A | 40A | 21A | 60A | 40A | 21A | ||||||||||
| Output Voltage | 12V | 24V | 48V | 12V | 24V | 48V | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| Dimensions | 295x127x41 | 295x127x41 | 295x127x41 | 295x127x41 | 295x127x41 | 295x127x41 | ||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32), BS EN/ EAC TP TC 020 | |||||||||||||||
