Home / DC-DC Enclosed Type / SD-50

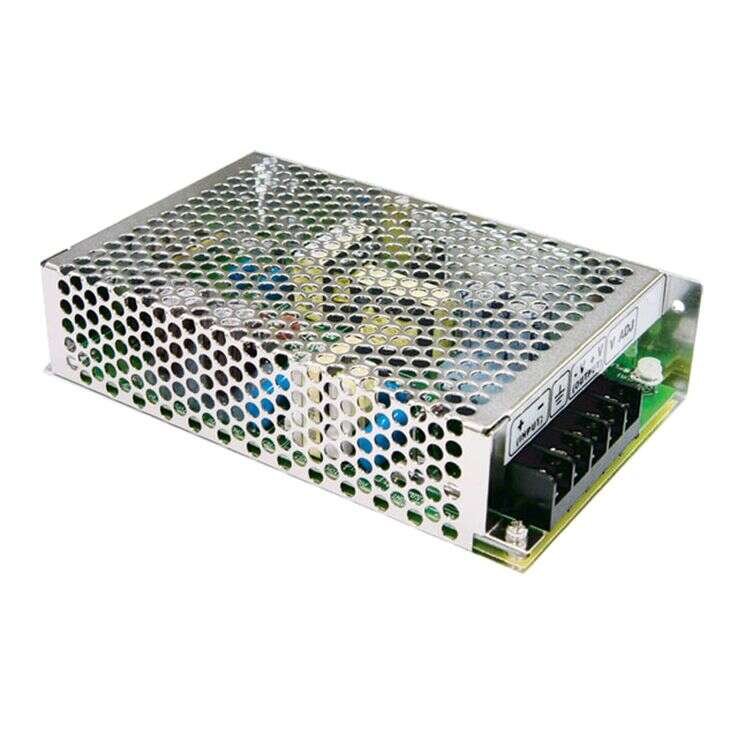

SD-50 Series
50W Single Output DC-DC Converter
SD-50 Series Main Features:
2:1 wide input range
Protections: Short Circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
SD-50A-5 / SD-50B-5
SD-50C-5 / SD-50A-12
SD-50B-12 / SD-50C-12
SD-50A-24 / SD-50B-24
SD-50C-24
MEAN WELL
Enclosed Power Supplies
1500VAC I/O isolation
Built in EMI filter, low ripple noise
100% full load burn in test
Fixed switching frequency at 83KHz
Low cost
High reliability
2 years warranty
Quote Request
| SD-50A-5 | SD-50B-5 | SD-50C-5 | SD-50A-12 | SD-50B-12 | SD-50C-12 | SD-50A-24 | SD-50B-24 | SD-50C-24 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 50 | 50 | 50.4 | 50.4 | 50.4 | 50.4 | 50.4 | 50.4 | |||||||
| Input Voltage | 9.2~18Vdc | 19~36Vdc | 36~72Vdc | 9.2~18Vdc | 19~36Vdc | 36~72Vdc | 9.2~18Vdc | 19~36Vdc | 36~72Vdc | |||||||
| Output Current | 10A | 10A | 10A | 4.2A | 4.2A | 4.2A | 2.1A | 2.1A | 2.1A | |||||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 24V | 24V | 24V | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 159x97x38 | 159x97x38 | 159x97x38 | 159x97x38 | 159x97x38 | 159x97x38 | 159x97x38 | 159x97x38 | 159x97x38 | |||||||
| Working Temperature | -10~+60°C | |||||||||||||||
| Satety Standards | EAC TP TC 004 approved, , AS/NZS 62368.1 | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class B BS EN/ , EAC TP TC 020 | |||||||||||||||
