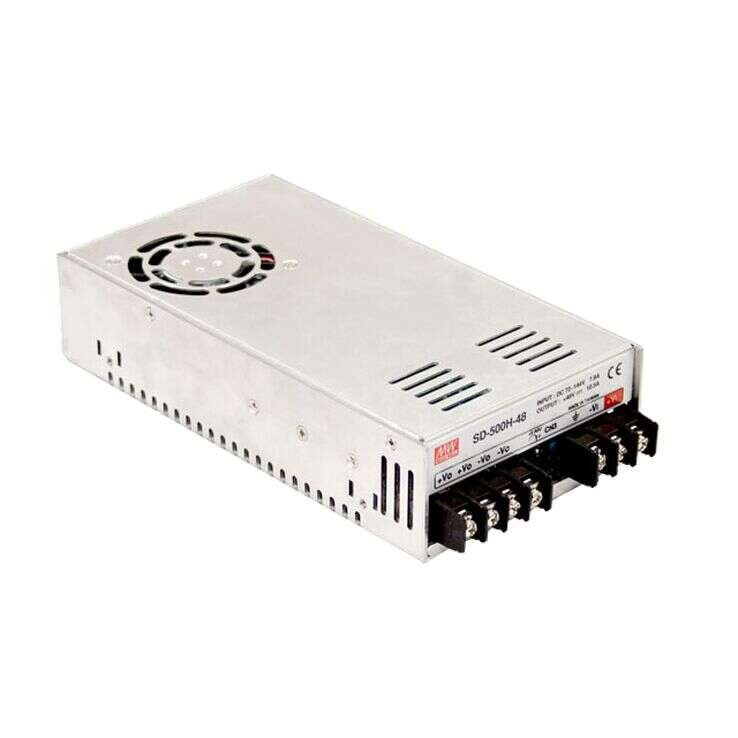

SD-500 Series
500W Single Output DC-DC Converter
SD-500 Series Main Features:
DC input active surge current limiting
Wide 4:1~2:1 DC Input range
Protections: Short Circuit / Overload / Over voltage / Over temp / Input polarity
Models:
Manufacturer:
Type:
Other features:
SD-500L-12 / SD-500L-24
SD-500L-48 / SD-500H-12
SD-500H-24 / SD-500H-48
MEAN WELL
Enclosed Power Supplies
2000VAC I/O Isolation
Forced air cooling by built in DC fan
with fan speed control function
Output OK signal
Built in remote On-OFF control
Built in remote sense function
3 years warranty
Quote Request
| SD-500L-12 | SD-500L-24 | SD-500L-48 | SD-500H-12 | SD-500H-24 | SD-500H-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 480 | 504 | 504 | 480 | 504 | 504 | ||||||||||
| Input Voltage | 19~72Vdc | 19~72Vdc | 19~72Vdc | 19~72Vdc | 19~72Vdc | 19~72Vdc | ||||||||||
| Output Current | 40A | 21A | 10.5A | 40A | 21A | 10.5A | ||||||||||
| Output Voltage | 12V | 24V | 48V | 12V | 24V | 48V | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| Dimensions | 215x115x50 | 215x115x50 | 215x115x50 | 215x115x50 | 215x115x50 | 215x115x50 | ||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | IEC62368-1,TUV BS EN/EN62368-1, approved, design refer to AS/NZS 62368.1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||||||||||||||
