Home / AC-DC DIN Rail Type / SDR-75

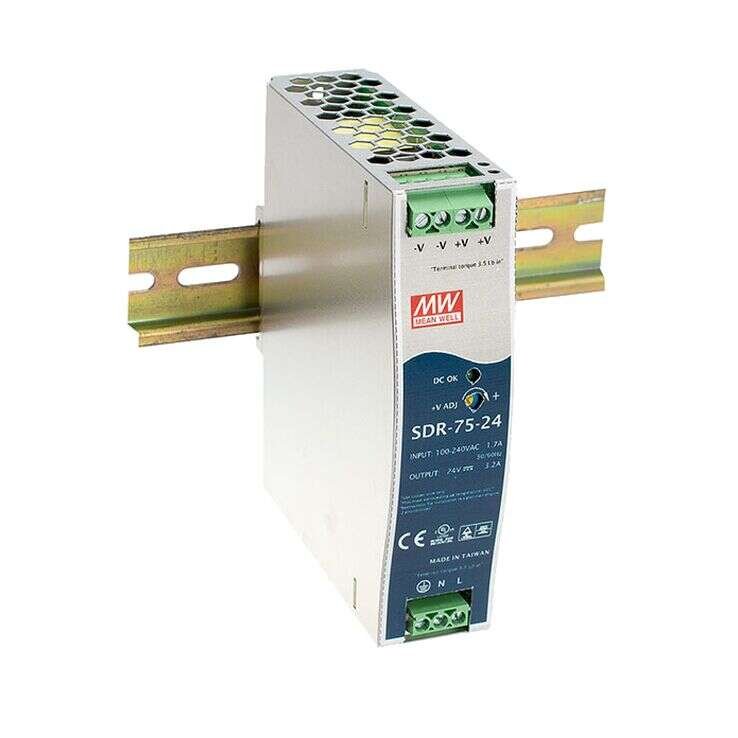

SDR-75 Series
DIN Rail Power Supplies 76–77W
SDR-75 Series Main Features:
High efficiency 90% and low power dissipation
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
SDR-75-12 / SDR-75-24
SDR-75-48
MEAN WELL
DIN Rail Power Supplies
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Built-in DC ok relay contact
100% full load burn-in test
150% peak load capability
3 years warranty
Quote Request
| SDR-75-12 | SDR-75-24 | SDR-75-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 76 | 77 | 77 | |||||||||||||
| Input Voltage | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | 88-264VAC 124-370VDC | |||||||||||||
| Output Current | 0~6.3A | 0~3.2A | 0~1.6A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 12~14V | 24~28V | 48~55V | |||||||||||||
| Dimensions | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | |||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1 approved, design refer to GL | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47 approved | |||||||||||||||
