Home / AC-DC Enclosed Type / SE-1000

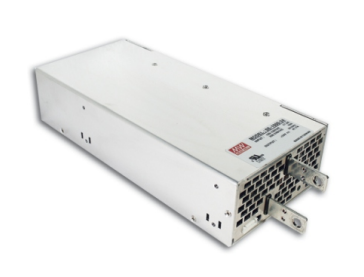

SE-1000 Series
Enclosed Power Supplies 750–1000.8W
SE-1000 Series Main Features:
Forced air cooling by built-in DC ball bearing fan
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
SE-1000-5 / SE-1000-9
SE-1000-12 / SE-1000-15
SE-1000-24 / SE-1000-48
MEAN WELL
Enclosed Power Supplies
AC input active surge current limiting
AC input range selected by switch
Built-in remote sense function
High power density 7.3w/in³
Built-in remote ON-OFF control
UL/CUL approved
LED Indicator for power on
3 years warranty
Quote Request
| SE-1000-5 | SE-1000-9 | SE-1000-12 | SE-1000-15 | SE-1000-24 | SE-1000-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 750 | 900 | 999.6 | 1000.5 | 1000.8 | 998.4 | ||||||||||
| Input Voltage | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | ||||||||||
| Output Current | 0~150A | 0~100A | 0~83.3A | 0~66.7A | 0~41.7A | 0~20.8A | ||||||||||
| Output Voltage | 5 | 9 | 12 | 15 | 24 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3.3-5.5V | 7.5-10V | 10-13.5V | 13.5-16.5V | 22-27.5V | 43-56V | ||||||||||
| Dimensions | 278*127*63.5 | 278*127*63.5 | 278*127*63.5 | 278*127*63.5 | 278*127*63.5 | 278*127*63.5 | ||||||||||
| Working Temperature | -20-+60°C | |||||||||||||||
| Satety Standards | UL62368-1, BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 | |||||||||||||||
