Home / AC-DC Enclosed Type / SE-1500

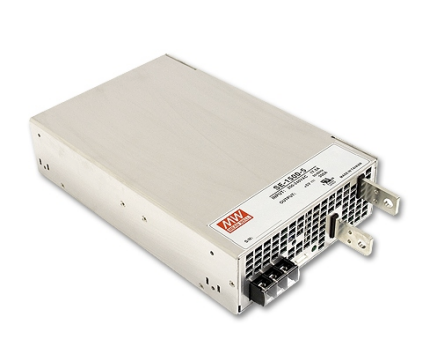

SE-1500 Series
Enclosed Power Supplies 1500–1502.4W
SE-1500 Series Main Features:
Forced air cooling by built-in DC ball bearing fan
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
SE-1500-5 / SE-1500-12
SE-1500-15 / SE-1500-24
SE-1500-27 / SE-1500-48
MEAN WELL
Enclosed Power Supplies
AC input active surge current limiting
AC input 180~264VAC
Built-in remote sense function
High power density 7.8w/inch³
UL/CUL approved
Built-in remote ON-OFF control
Low cost
2 years warranty
Quote Request
| SE-1500-5 | SE-1500-12 | SE-1500-15 | SE-1500-24 | SE-1500-27 | SE-1500-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1500 | 1500 | 1500 | 1500 | 1501.2 | 1502.4 | ||||||||||
| Input Voltage | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | ||||||||||
| Output Current | 0~300A | 0~125A | 0~100A | 0~62.5A | 0~55.6A | 0~31.3A | ||||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 27 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3.3~5.5V | 10.8-13.5V | 13.5-16.5V | 21.6-26.4V | 25-30V | 43.2-56V | ||||||||||
| Dimensions | 225*124*50 | 225*124*50 | 225*124*50 | 225*124*50 | 225*124*50 | 225*124*50 | ||||||||||
| Working Temperature | -20-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 | |||||||||||||||
