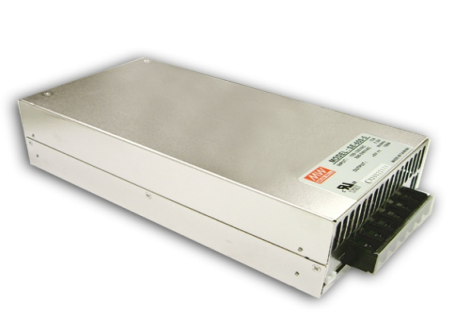

SE-600 Series
Enclosed Power Supplies 500–600W
SE-600 Series Main Features:
Forced air cooling by built-in DC fan
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
SE-600-5 / SE-600-12
SE-600-15 / SE-600-24
SE-450-27 / SE-450-36
SE-450-48
MEAN WELL
Enclosed Power Supplies
AC input active surge current limiting
AC input range selected by switch
Built-in remote sense function
UL approved
Low cost
High power density 4.9w/in³
3 years warranty
Quote Request
| SE-600-5 | SE-600-12 | SE-600-15 | SE-600-24 | SE-600-27 | SE-600-36 | SE-600-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 500 | 600 | 600 | 600 | 599.4 | 597.6 | 600 | |||||||||
| Input Voltage | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | 90-264VAC 254-370VDC | |||||||||
| Output Current | 0~100A | 0~50A | 0~40A | 0~25A | 0~22.2A | 0~16.6A | 0~12.5A | |||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 27 | 36 | 48 | |||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 4.75~5.5V | 10~13.5V | 13.5-16.5V | 22~26.4V | 24~30V | 32~40V | 43~56V | |||||||||
| Dimensions | 247*127*63.5 | 247*127*63.5 | 247*127*63.5 | 247*127*63.5 | 247*127*63.5 | 247*127*63.5 | 247*127*63.5 | |||||||||
| Working Temperature | -20-+60°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, BSMI CNS14336-1, KC K60950-1(for 12V,24V only), IS13252(Part1)/IEC60950-1(except for 48V) approved; Design refer to BS EN/EN62368-1 | |||||||||||||||
