TDR-240 Series

DIN Rail Power Supplies 240W

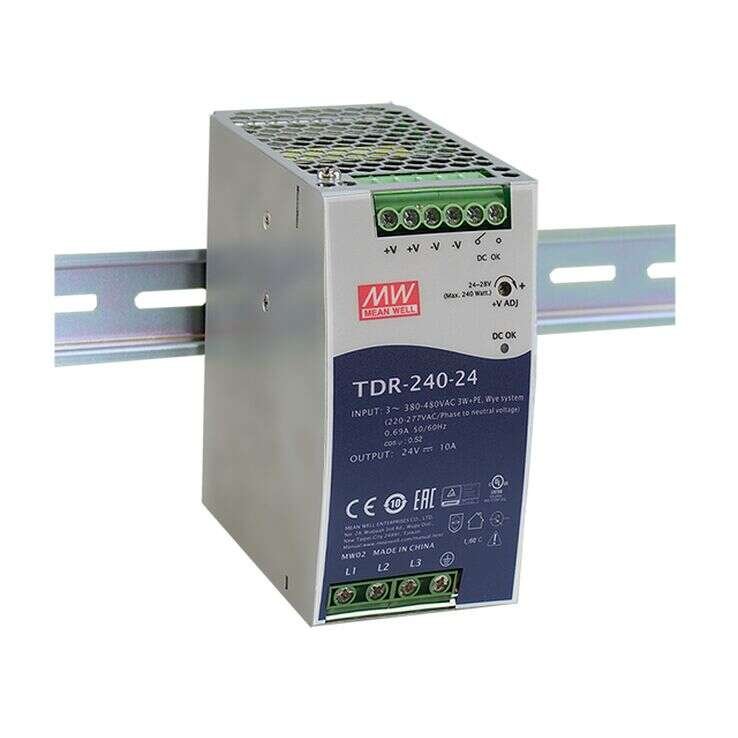

TDR-240

TDR-240 Series Main Features:

Three Phase 340-550VAC wide range input

63mm slim profile (width)

Models:

Manufacturer:

Type:

Other features:

TDR-240-24 / TDR-240-48

MEAN WELL

DIN Rail Power Supplies

High efficiency 92% and low
power dissipation

Build-in passive PFC function

UL61010 approved, EN61000-6-2
industrtial immunity level

DC OK relay contact

3 years warranty

Quote Request

    TDR-240-24TDR-240-48
    Wattage240240
    Input VoltageThree-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDCThree-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC
    Output Current0-10A0-5A
    Output Voltage2448
    Output Voltage OptionSingleSingle
    DC Output Adjustment24-28V48-55V
    Dimensions63x125.2x113.563x125.2x113.5
    Working Temperature-30-+70°C
    Satety StandardsUL61010-1, UL61010-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004 approved
    EMC StandardsEN55032(CISPR32)/EN61204-3, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
