Home / AC-DC DIN Rail Type / TDR-960

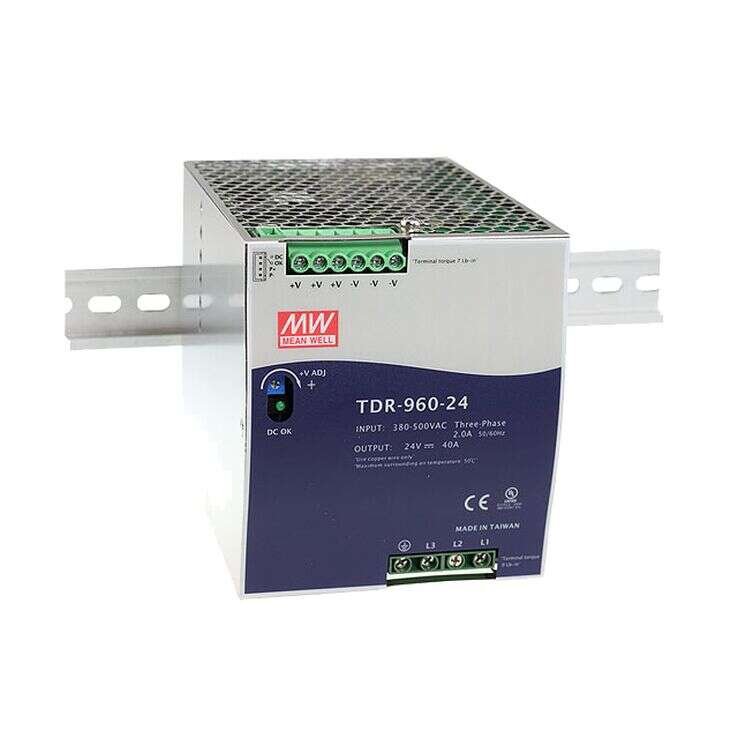

TDR-960 Series
DIN Rail Power Supplies 960W
TDR-960 Series Main Features:
Three-Phase 340~550VAC wide range input (Dual phase operation possible)
Width only 110mm
Protections: Short circuit / Overload / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
TDR-960-24 / TDR-960-48
MEAN WELL
DIN Rail Power Supplies
High efficiency 94.5% and low power dissipation
Cooling by free air convection
Built-in active PFC function compliance to EN61000-3-2
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508(industrial control equipment) approved
Current sharing up to 3840W(3+1)
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty
Quote Request
[wpforms id="1665" title="false"]
| TDR-960-24 | TDR-960-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 960 | 960 | ||||||||||||||
| Input Voltage | Three-Phase 340~550VAC (Dual phase operation possible) 480~780VDC | Three-Phase 340~550VAC (Dual phase operation possible) 480~780VDC | ||||||||||||||
| Output Current | 0~40A | 0~20A | ||||||||||||||
| Output Voltage | 24 | 48 | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| DC Output Adjustment | 24~28V | 48~55V | ||||||||||||||
| Dimensions | 110x125.2x150 | 110x125.2x150 | ||||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL508 approved, IEC60950-1 CB approved by SIQ | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A | |||||||||||||||
