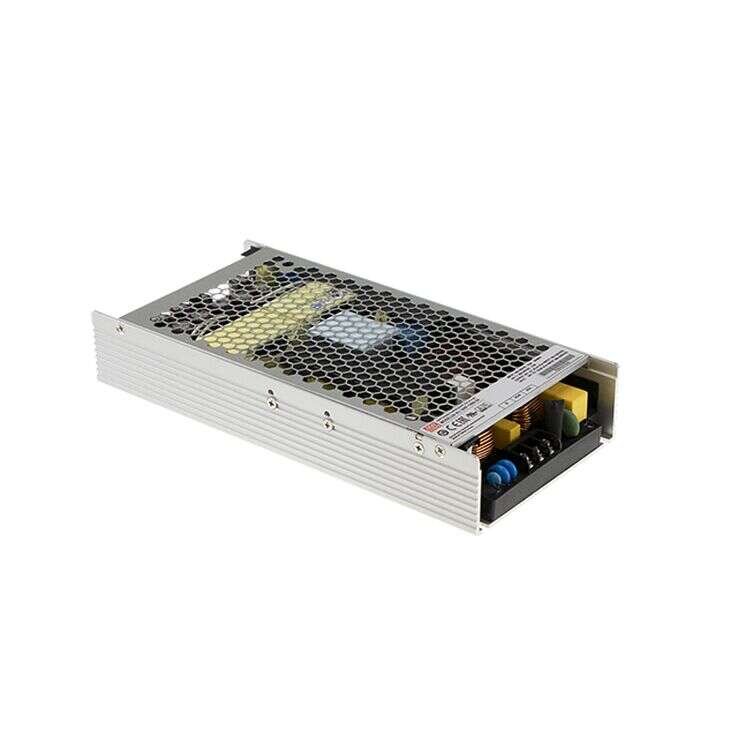

UHP-1000 Series

Enclosed Power Supplies 960–1008W

uhp-1000

UHP-1000 Series Main Features:

Slim and Low profile (41mm)

Withstand 300VAC surge input for 5 seconds

Models:

Manufacturer:

Type:

Other features:

UHP-1000-12 / UHP-1000-24
UHP-1000-36 / UHP-1000-48

MEAN WELL

Enclosed Power Supplies

Fanless and conduction-cooled design

-30 ~ +70°C working temperature

Protection: Short circuit/Overload/Over voltage/Over temperature

Operating altitude up to 5000 meter

5 years warranty

Quote Request

    UHP-1000-12UHP-1000-24UHP-1000-36UHP-1000-48
    Wattage960100810081008
    Input Voltage90-264VAC, 250-370VDC90-264VAC, 250-370VDC90-264VAC, 250-370VDC90-264VAC, 250-370VDC
    Output Current80A42A28A21A
    Output Voltage12-14.4V24-28.8V36-43.2V48-57.6V
    Output Voltage OptionSingleSingleSingleSingle
    Dimensions240x 115x 41240x 115x 41240x 115x 41240x 115x 41
    Working Temperature-30-+70°C
    Satety StandardsUL62368-1, TUV EN62368-1, EAC TP TC 004 approved; Design refer to EN61558-1, EN60335-1
    EMC StandardsEN55032 (CISPR32), EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-6-2, EN61000-4-6, EN61000-4-8, EN61000-4-11
