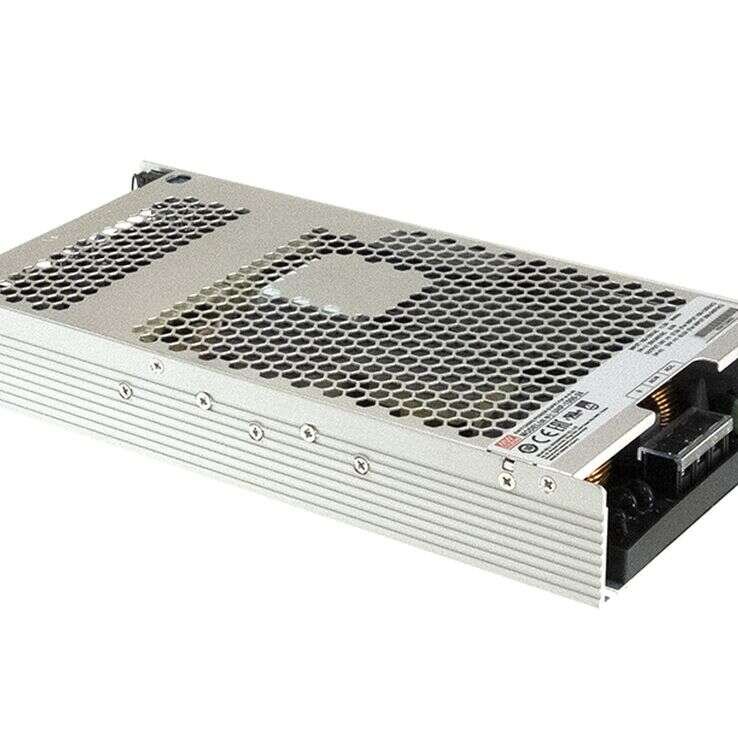

UHP-1500-HV Series
Enclosed Power Supplies 1500–1501W
UHP-1500-HV Series Main Features:
UHP-1500 series is a 1500W single-output slim type power supply unit with 1U 41mm of low profile design.
Models:
Manufacturer:
Type:
Other features:
UHP-1500-115 / UHP-1500-230
UHP-1500-380 / UHP-1500-380E
MEAN WELL
Enclosed Power Supplies
High voltage output (115/23/380V)
Fanless and conduction-cooled design
Slim and 1U low profile (41mm)
Built-in active PFC function
DC 12V/0.4A auxiliary power
Output voltage and constant current
level programmable (PV/PC)
Protections: short circuit/over load
/over voltage/over temperature
Built-in remote ON-OFF control and DC
OK signal
Operating altitude up to 2000 meter (E
type Note.6, Blank/PM/CAN type Note.7)
Quote Request
| UHP-1500-115 | UHP-1500-230 | UHP-1500-380 | UHP-1500-380E | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1500.75 | 1500 | 1500 | 1501 | ||||||||||||
| Input Voltage | 90-264VAC | 90-264VAC | 90-264VAC | 90-264VAC | ||||||||||||
| Output Current | 13.05 | 6.95 | 4.5 | 3.95 | ||||||||||||
| Output Voltage | 115 | 230 | 380 | 380 | ||||||||||||
| Dimensions | 290x140x41 | 290x140x41 | 290x140x41 | 290x140x41 | ||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved, Design refers to BS EN/EN61558-1, BS EN/EN60335-1 | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
