Home / AC-DC Enclosed Type / UHP-2500

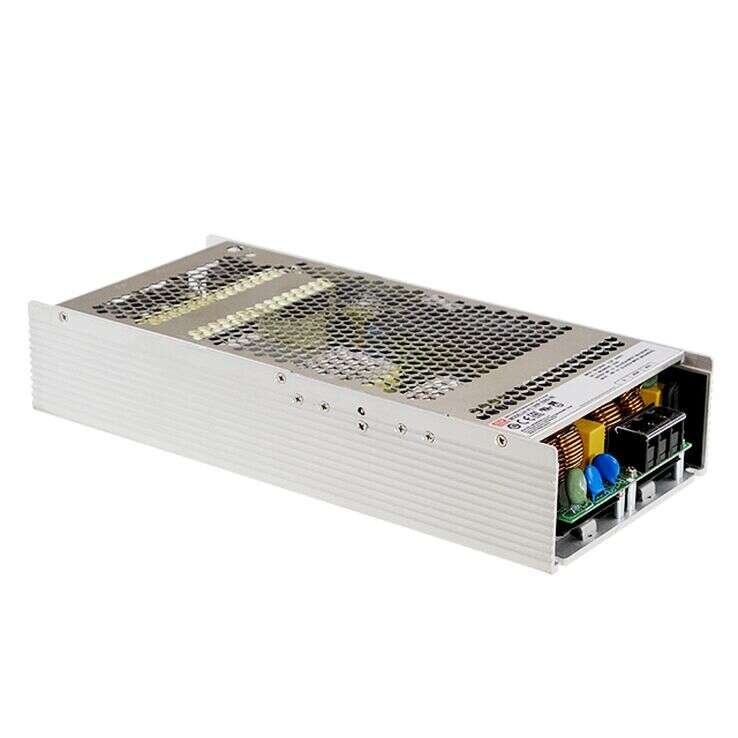

UHP-2500 Series

Enclosed Power Supplies 2500W

uhp-2500

UHP-2500 Series Main Features:

Slim and Low profile (41mm)

Fanless and conduction-cooled design

Models:

Manufacturer:

Type:

Other features:

UHP-2500-24 / UHP-2500-36
UHP-2500-48

MEAN WELL

Enclosed Power Supplies

Built-in active PFC function

Output voltage and constant current level programmable

Protections: Short circuit / Overload /Over voltage / Over temperature

Built-in remote ON-OFF control

Optional PMBus or CANBus protocol

5 years warranty

Quote Request

    UHP-2500-24UHP-2500-36UHP-2500-48
    Wattage250025002500
    Input Voltage90-264VAC
    127-370VDC    		90-264VAC
    127-370VDC    		90-264VAC
    127-370VDC
    Output Current104.2A69.4A52.1A
    Output Voltage24V36V48V
    Output Voltage OptionSingleSingleSingle
    DC Output Adjustment24-28.8V24-28.8V48-57.6V
    Dimensions310 x 140 x 60310 x 140 x 60310 x 140 x 60
    Working Temperature-30-+70°C
    Satety StandardsUL62368-1,TUV EN62368-1,approved; design refers to EN61558-1, EN60335-1(by request)UL62368-1,TUV EN62368-1, EAC TP TC 004 approved; design refers to EN61558-1, EN60335-1(by request), I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC, I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RHUL62368-1,TUV EN62368-1,approved; design refers to EN61558-1, EN60335-1(by request)
    EMC StandardsEN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11EN55032, EN61000-3-2,3, EN61000-4-2,3,4, EN61000-6-2,EN61000-4-6,8,11EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
