Home / AC-DC Enclosed Type / UHP-350(R)

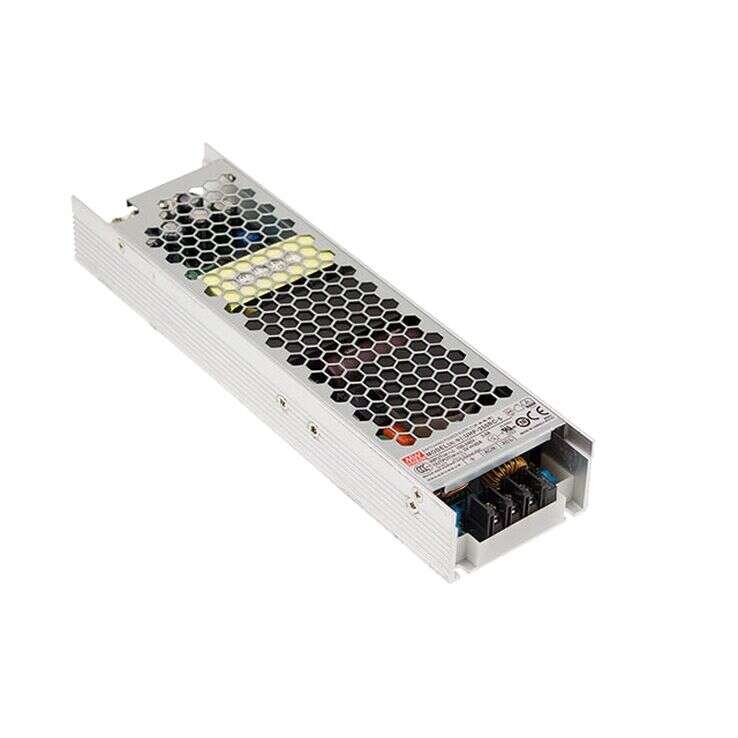

UHP-350(R) Series
Enclosed Power Supplies 198–351W
UHP-350(R) Series Main Features:
Slim and Low profile (26mm)
Fanless design, 200W convection
Protections:Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
UHP-350-3.3 / UHP-350-4.2
UHP-350-5 / UHP-350-12
UHP-350-15 / UHP-350-24
UHP-350-36 / UHP-350-48
UHP-350R-3.3 / UHP-350R-4.2
UHP-350R-5 / UHP-350R-12
UHP-350R-15 / UHP-350R-24
UHP-350R-36 / UHP-350R-48
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for
5 seconds
Built-in active PFC function
150% peak load capability (100ms)
-30-+70°C working temperature
Operating altitude up to 5000 meter
LED Indicator for power on
3 years warranty
Quote Request
| UHP-350-3.3 | UHP-350-4.2 | UHP-350-5 | UHP-350-12 | UHP-350-15 | UHP-350-24 | UHP-350-36 | UHP-350-48 | UHP-350R-3.3 | UHP-350R-4.2 | UHP-350R-5 | UHP-350R-12 | UHP-350R-15 | UHP-350R-24 | UHP-350R-36 | UHP-350R-48 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 198 | 252 | 300 | 350.4 | 351 | 350.4 | 351 | 350.4 | 198 | 252 | 300 | 350.4 | 351 | 350.4 | 351 | 350.4 |
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC |
| Output Current | 60A | 60A | 60A | 29.2A | 23.4A | 14.6A | 9.75A | 7.3A | 60A | 60A | 60A | 29.2A | 23.4A | 14.6A | 9.75A | 7.3A |
| Output Voltage | 3.3 | 4.2 | 5 | 12 | 15 | 24 | 36 | 48 | 3.3 | 4.2 | 5 | 12 | 15 | 24 | 36 | 48 |
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC Output Adjustment | 3.2-3.5V | 3.6-4.4V | 4.5-5.5V | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 34.2-37.8V | 45.6-50.4V | 3.2-3.5V | 3.6-4.4V | 4.5-5.5V | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 34.2-37.8V | 45.6-50.4V |
| Dimensions | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 | 220x 62x 31 |
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032, GB9254, Class B, EN55014, EN61000-3-2, - 3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A | |||||||||||||||
