Home / AC-DC DIN Rail Type / WDR-120

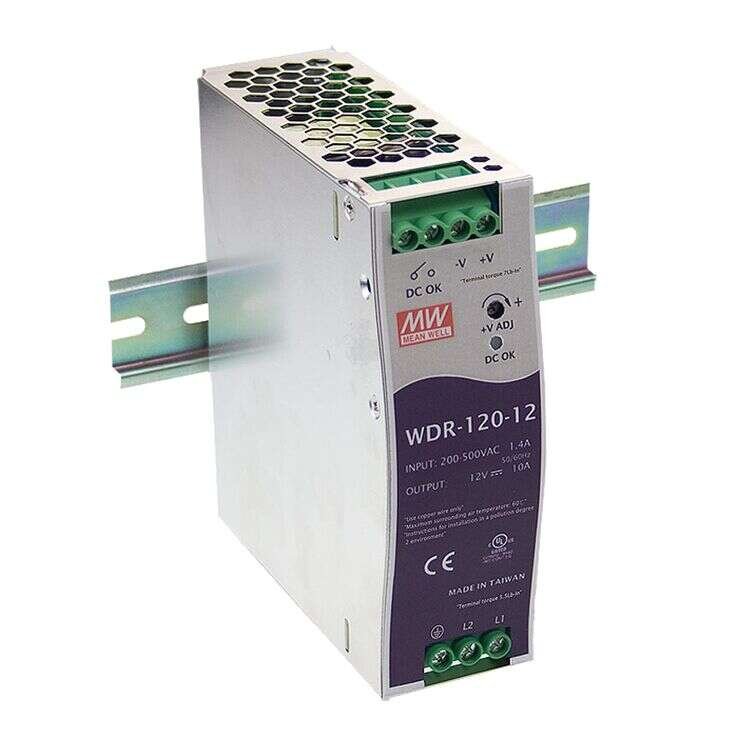

WDR-120 Series
DIN Rail Power Supplies 120W
WDR-120 Series Main Features:
Single and two phase wide input range 180-550VAC
Cooling by free air convection
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
WDR-120-12 / WDR-120-24
WDR-120-48
MEAN WELL
DIN Rail Power Supplies
Can be installed on DIN rail TS-35 / 7.5 or 15
Built-in constant current limiting circuit
UL508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty
Quote Request
| WDR-120-12 | WDR-120-24 | WDR-120-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 120 | 120 | |||||||||||||
| Input Voltage | 180-550VAC 254-780VDC | 180-550VAC 254-780VDC | 180-550VAC 254-780VDC | |||||||||||||
| Output Current | 0~10A | 0~5.0A | 0~2.5A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 12~15V | 24~28V | 48~53V | |||||||||||||
| Dimensions | 40x125.2x113.5 | 40x125.2x113.5 | 40x125.2x113.5 | |||||||||||||
| Working Temperature | -10~+60°C | |||||||||||||||
| Satety Standards | UL508 approved : IEC60950-1 CB approved by SIQ: Design refer to GL | UL508, TUV EN60950-1, approved | UL508, TUV EN60950-1, approved | |||||||||||||
| EMC Standards | Compliance to EN55011(CISPR11), EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level | |||||||||||||
