XDR-480E Series

DIN Rail Power Supplies 360–480W

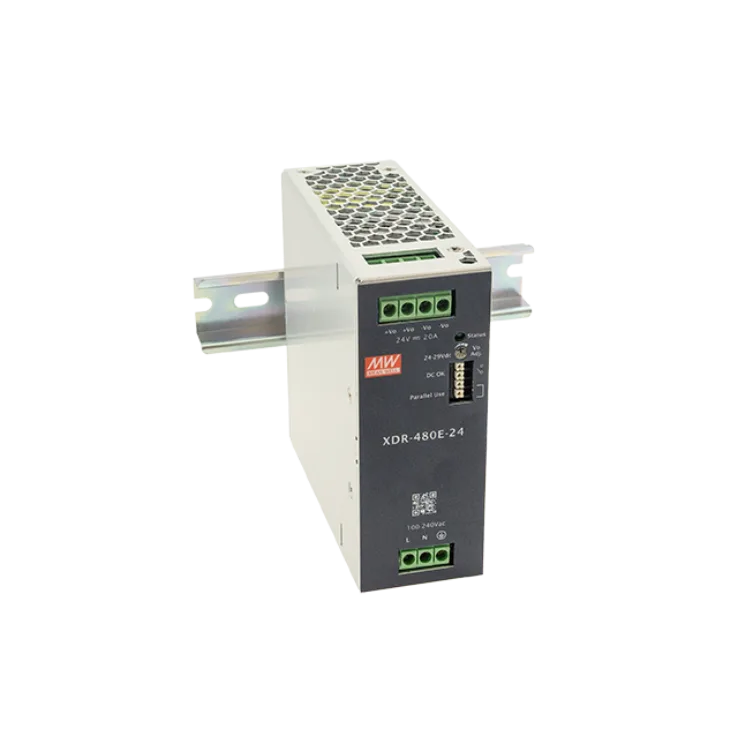

XDR-480E-image

XDR-480E Series Main Features:

The XDR-480E series is a 480W AC/DC economical ultra slim industrial DIN rail power supply.

85~264Vac input with PFC

48mm slim width

Models:

Manufacturer:

Type:

Other features:

XDR-480E-12 / XDR-480E-24
XDR-480E-36 / XDR-480E-48

MEAN WELL

DIN Rail Power Supplies

Can be installed on DIN rail TS-35/7.5 or 15

High efficiency up to 95.5% and low power dissipation <1W

Operating altitude up to 5000 meters

Built-in DC OK relay contact

Built-in constant current limiting circuit

Fanless design, cooling by free air convection

Protections: Short circuit / Overload /
Over voltage / Over temperature

3 years warranty

Quote Request

    XDR-480E-12XDR-480E-24XDR-480E-36XDR-480E-48
    Wattage360480478.8480
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current30A20A13.3A10A
    Output Voltage12243648
    Output Voltage OptionSingleSingleSingleSingle
    Output Adjustment12-15V24-29V36-42V48-55V
    Dimensions(mm)48x125.2x11648x125.2x11648x125.2x11648x125.2x116
    Working Temperature-40~+70°C
    Satety StandardsUL/CUL 61010-1/-2-201; TUV BS EN/EN 62368-1, BS EN IEC/EN IEC 61558-1/-2-16, BS EN/EN 61010-1/-2-201; CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201; RCM AS/NZS 62368-1, AS/NZS 61558-1/-2-16; BSMI CNS15598-1; CCC GB4943.1; EAC TPTC004
    EMC StandardsBS EN/EN61000-4-2; BS EN/EN61000-4-3; BS EN/EN61000-4-4; BS EN/EN61000-4-5; BS EN/EN61000-4-6; BS EN/EN61000-4-8;
