Home / AC-DC DIN Rail Type / XTR-480

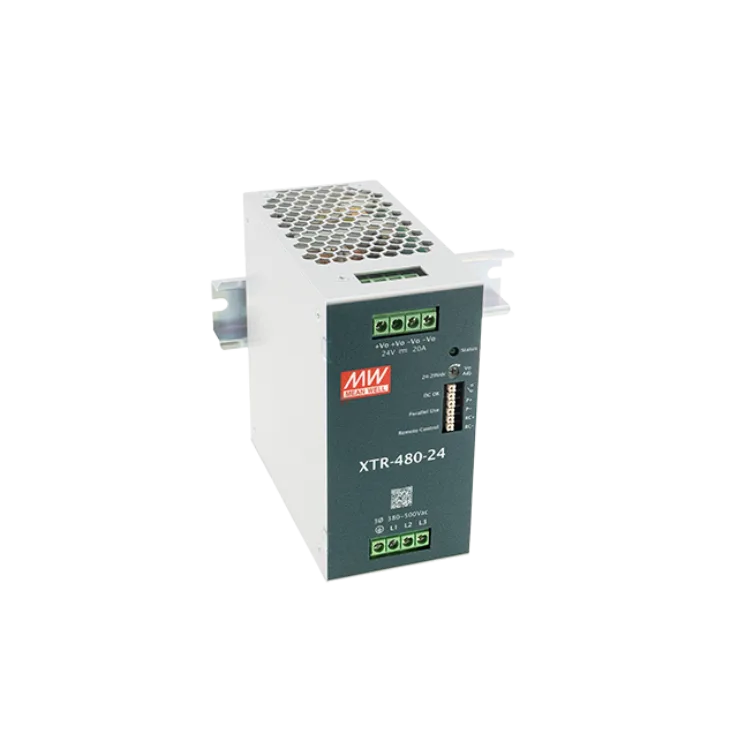

XTR-480 Series
DIN Rail Power Supplies 360–480W
XTR-240 Series Main Features:
The XTR-480 Series is a 480W AC/DC ultra slim industrial high-reliability DIN rail power supply.
Three-Phase 320~600Vac wide range input, 600~700Vac surge input for 1 sec
Models:
Manufacturer:
Type:
Other features:
XTR-480-12 / XTR-480-24
XTR-480-36 / XTR-480-48
MEAN WELL
DIN Rail Power Supplies
63mm Ultra slim width
High efficiency up to 95.5% and low
power dissipation
200% Peak Power capability
Tool free terminal block (LA type)
Ultra low inrush current <10A
Built-in constant current limiting circuit
Fanless design, cooling by free air convection
Protections: Short circuit / Overload /
Over voltage / Over temperature
5 years warranty
Quote Request
| XTR-480-12 | XTR-480-24 | XTR-480-36 | XTR-480-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 360 | 480 | 478.8 | 480 | ||||||||||||
| Input Voltage | 320-600VAC 450-800VDC | 320-600VAC 450-800VDC | 320-600VAC 450-800VDC | 320-600VAC 450-800VDC | ||||||||||||
| Output Current | 30A | 20A | 13.3A | 10A | ||||||||||||
| Output Voltage | 12 | 24 | 36 | 48 | ||||||||||||
| Output Adjustment | 12-15V | 24-29V | 36-42V | 48-55V | ||||||||||||
| Dimensions(mm) | 63x125.2x125 | 63x125.2x125 | 63x125.2x125 | 63x125.2x125 | ||||||||||||
| Working Temperature | -40~+85°C | |||||||||||||||
| Satety Standards | UL121201/CSA C22.2 NO.213.17 Class I, Div. 2 Group A, B, C, D Hazardous Locations T4; UL/CUL 61010-1/-2-201; TUV BS EN/EN 62368-1, BS EN IEC/EN IEC 61558-1/-2-16, BS EN/EN 61010-1/-2-201; CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201; RCM AS/NZS 62368-1,AS/NZS 61558-1/-2-16; BSMI CNS15598-1;CCC GB4943.1;EAC TPTC004 | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2; BS EN/EN61000-4-3; BS EN/EN61000-4-4; BS EN/EN61000-4-5; BS EN/EN61000-4-6; BS EN/EN61000-4-8; BS EN/EN61000-4-11; | |||||||||||||||
